Welding Workstation Fume Extraction – G&G Micro JET Filtration

To ensure a safe and clean working environment, we implemented effective local fume extraction at this welding workstation, using the compact G&G Micro JET filter unit. This technology is ideal for workplaces that cannot be connected to a central extraction system due to space or budget constraints.

System Description

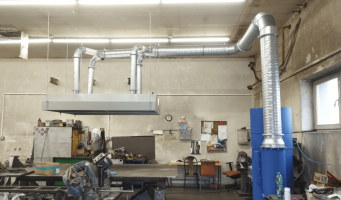

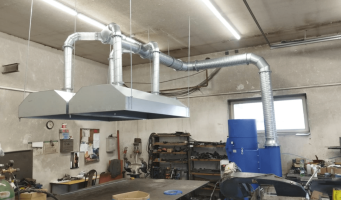

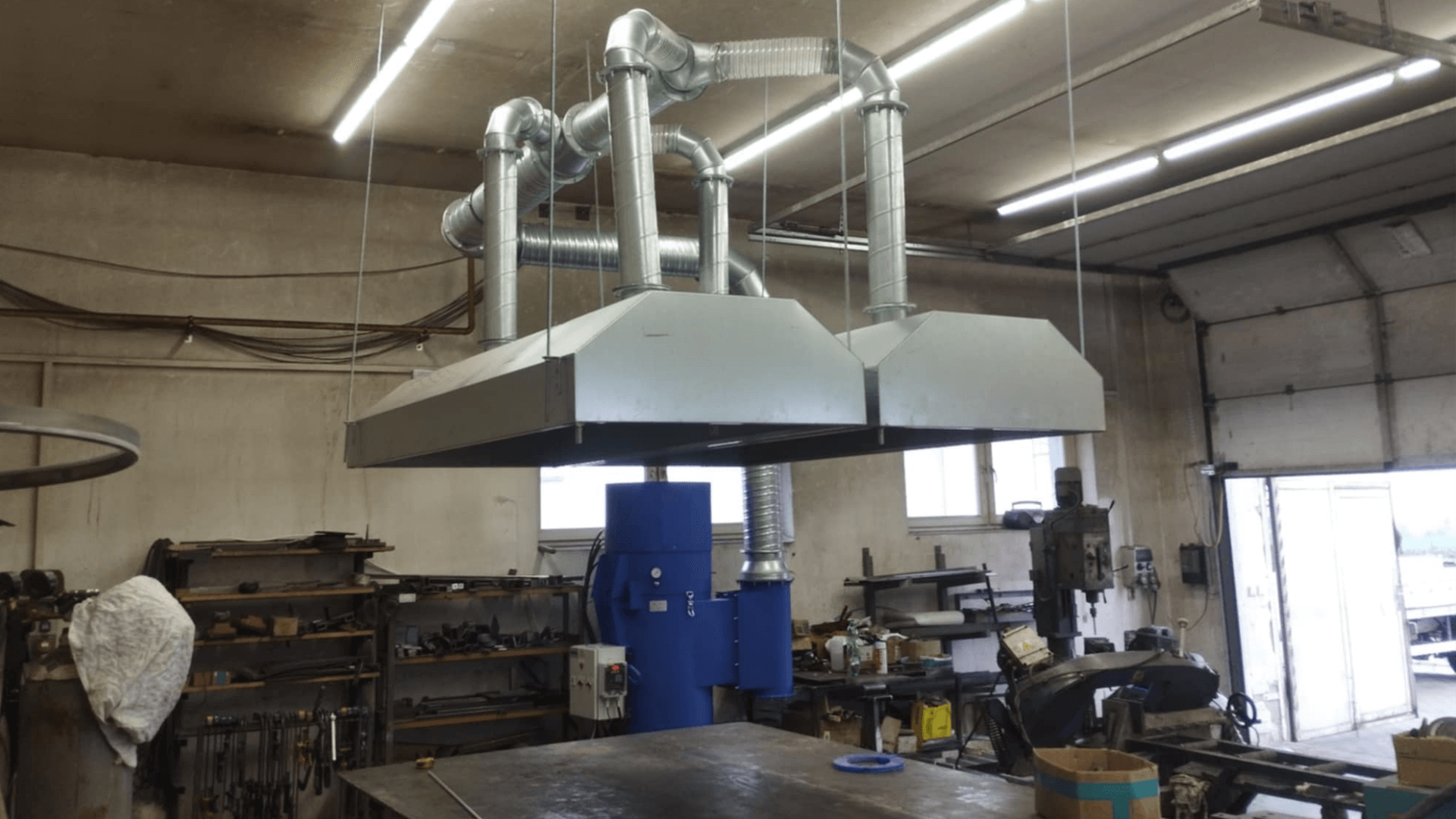

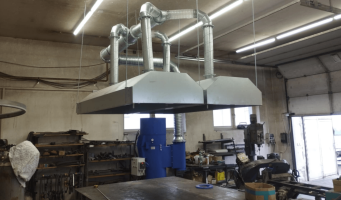

• Double extraction hoods above the workbench capture fumes directly at the source.

• Extraction ductwork made from galvanized sheet metal leads to the compact filter unit.

• The G&G Micro JET filtration technology features automatic filter cartridge regeneration via compressed air pulses.

• The extraction fan with EC motor allows for performance adjustment directly on the control panel.

• The filter unit is delivered in a Plug & Play version—just connect the extraction duct, power, and compressed air.

Applied Technology – G&G Micro JET

The Micro JET filter unit is designed for the extraction of individual workstations where connection to a central system would be technically complex or economically disadvantageous. Its design makes it compact, efficient, and affordable.

Technical Features

• Performance variants: 1200 m³/h and 2500 m³/h

• Automatic filter cartridge regeneration

• EC motor with adjustable power

• Easy installation (Plug & Play)

System Benefits

• Effective extraction of welding fumes and smoke

• Improved work environment and employee health protection

• Low operating costs thanks to the self-cleaning filter system

• Flexible adjustment of fan performance

• Quick installation without the need for complex construction modifications

Typical Applications

• Individual welding and assembly workstations

• Metalworking and locksmith workshops

• Smaller operations without central extraction

• Repair and service stations
