Welding Fume Extraction Filter Installation

To ensure a clean and safe working environment in welding shops, we supply and install comprehensive extraction systems with highly efficient filtration. Our solution is ideal for extracting welding fumes, smoke, and fine dust directly at the source.

Technology Used for Welding Fume Extraction

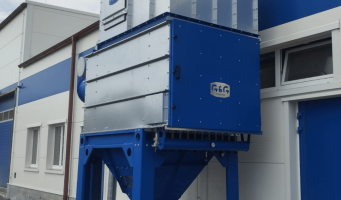

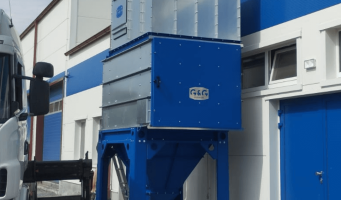

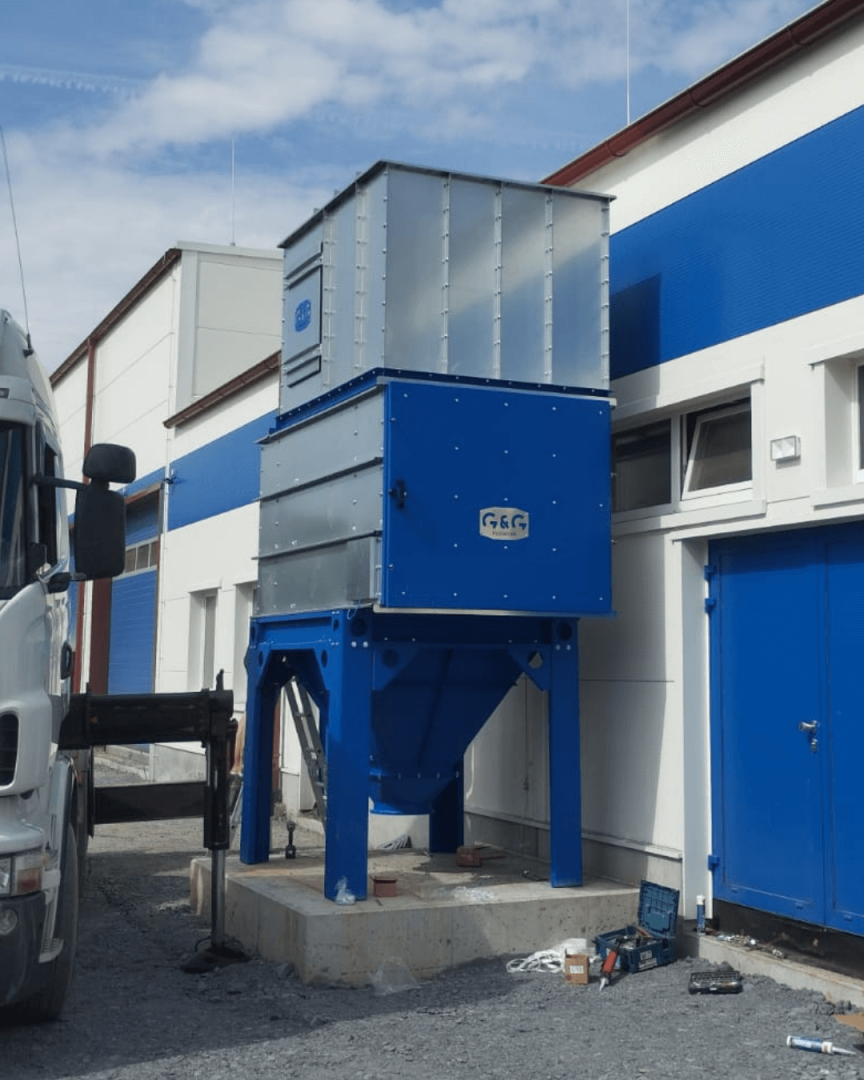

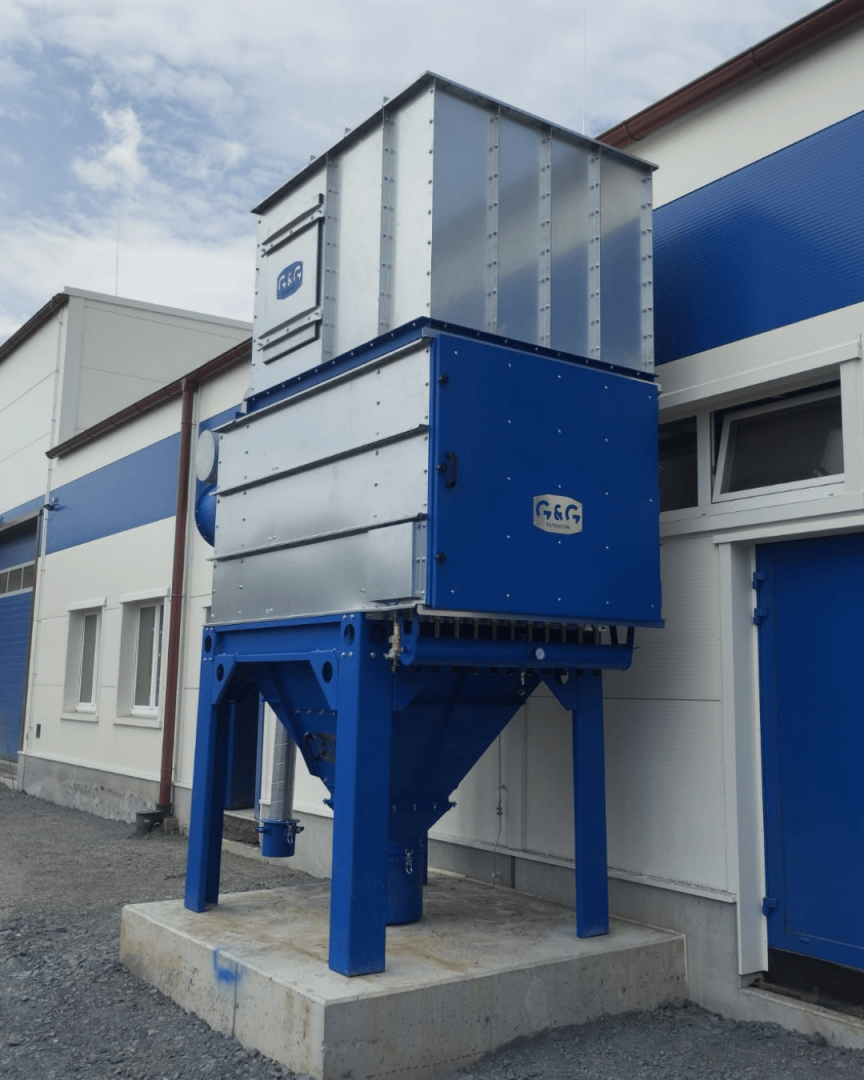

• The Jet BAG filtration unit provides efficient filtration of welding fumes.

• Automatic regeneration of filter bags with compressed air is based on the current pressure drop, ensuring stable extraction performance and extended filter media lifespan.

• A spark separator located before the filter unit captures sparks and coarse particles, protecting the filter from damage and reducing fire risk.

• A 50-liter dust bin allows for easy and quick handling of collected dust and fumes.

Efficient Extraction at Welding Workstations

• Adjustable extraction arms can be directed exactly to the welding point, capturing the maximum amount of harmful particles.

• Automatic dampers at each workstation ensure extraction is active only where welding is in progress, leading to energy savings.

• Extraction power is controlled by a frequency inverter, which automatically adjusts performance to meet the current demands of the welding shop.

Main Benefits of Our Welding Extraction System

• Effective fume and dust extraction directly at the source

• Fire safety thanks to the spark separator

• Automatic filter media regeneration without downtime

• Energy-efficient operation through automatic power control and damper closing

• Easy operation and quick emptying of the 50-liter dust bin
