Grinding Dust Extraction with High Spark Intensity

Grinding with an angle grinder is a process that generates not only fine metallic dust but also a significant amount of sparks. Effective and safe extraction of these particles is essential for protecting workers, equipment, and the manufacturing environment.

Extraction System Designed for High Loads

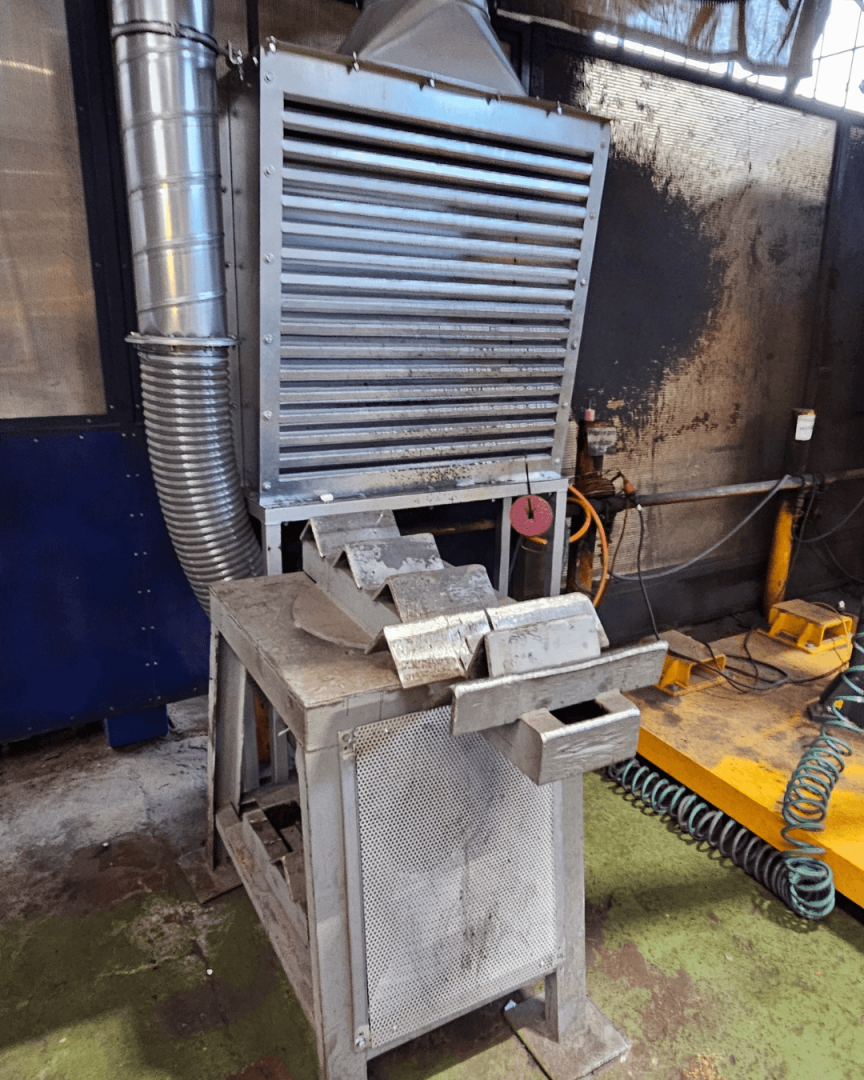

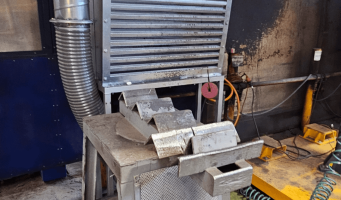

Our solution uses extraction hoods placed directly in the spark path, ensuring maximum capture of both dust and sparks right at the source.

An SSGG centrifugal spark separator is installed in the suction duct before the filter unit. It efficiently separates sparks and coarse particles from the airstream, protecting the filter unit and extending its service life.

Filtration and Stable Operation

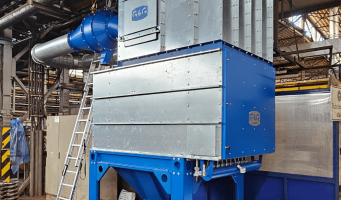

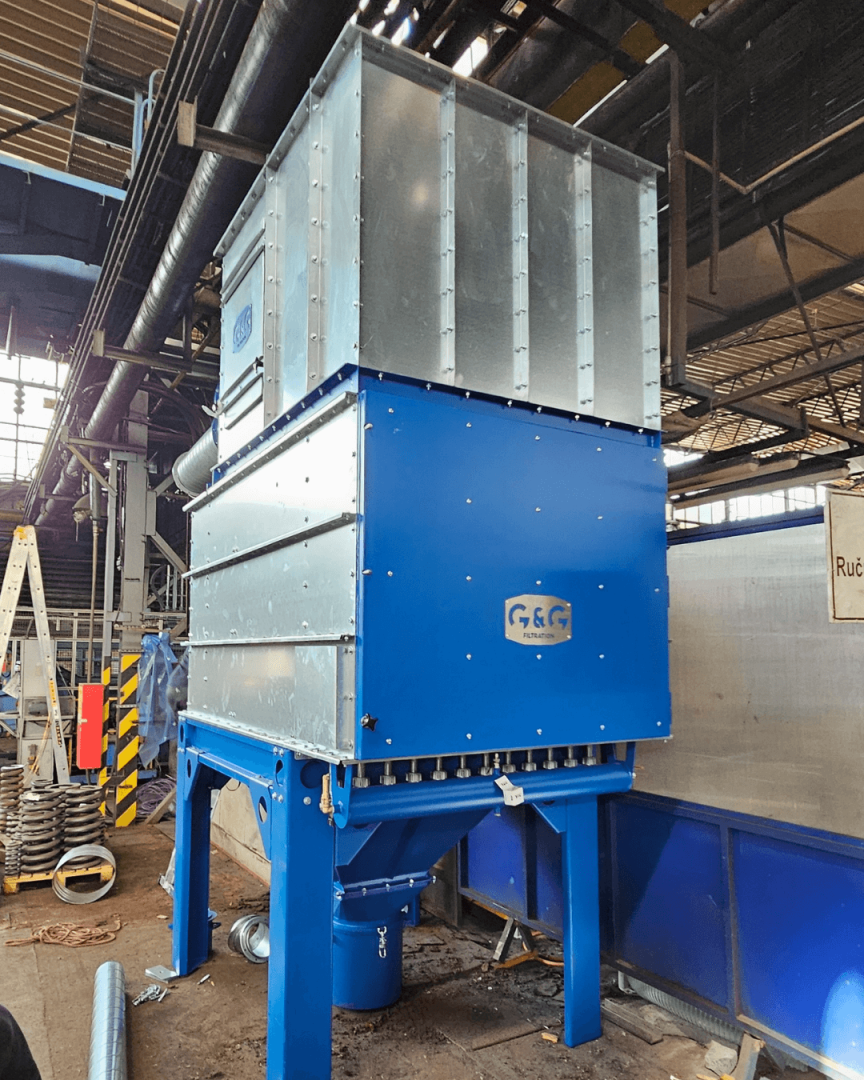

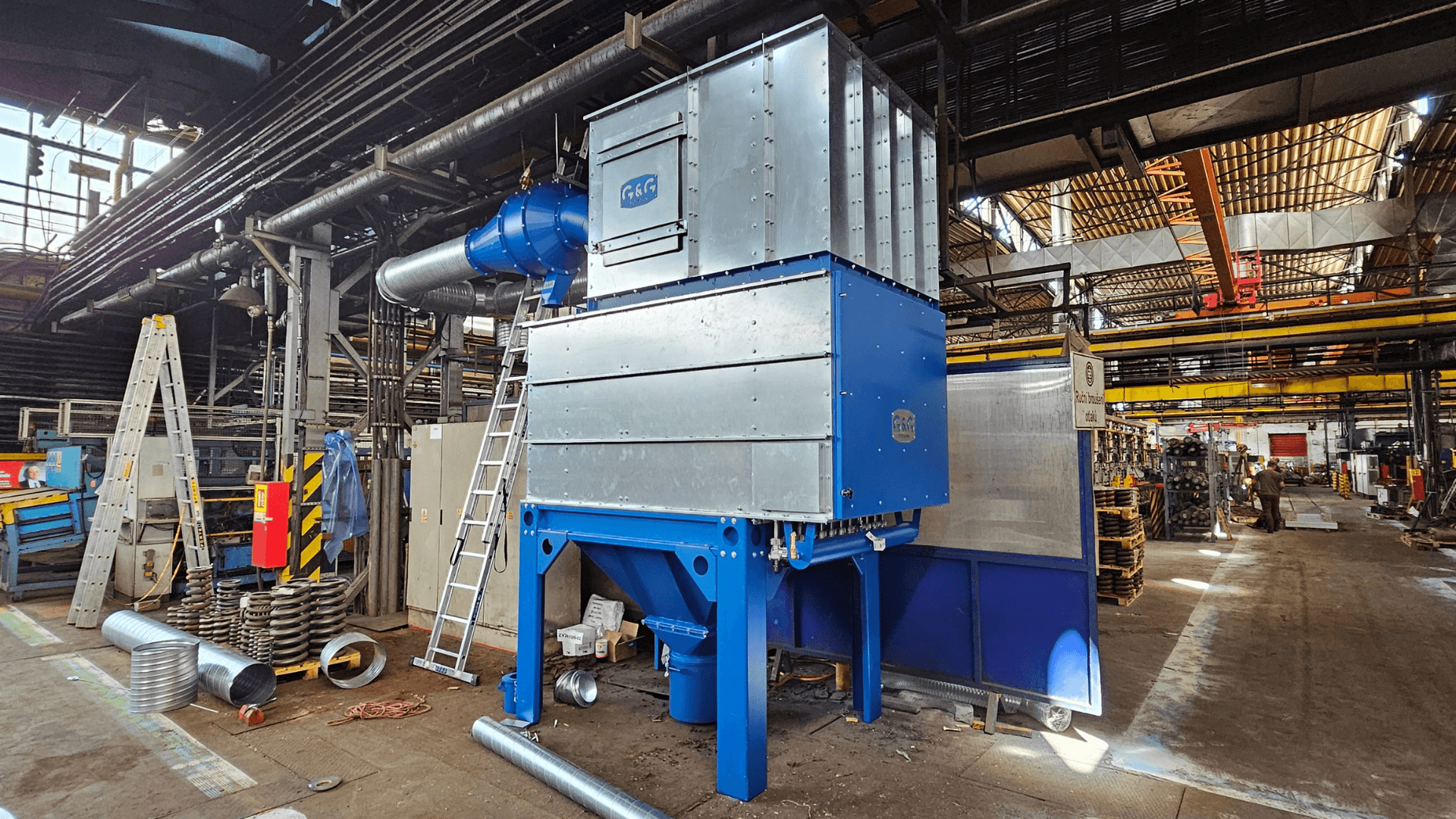

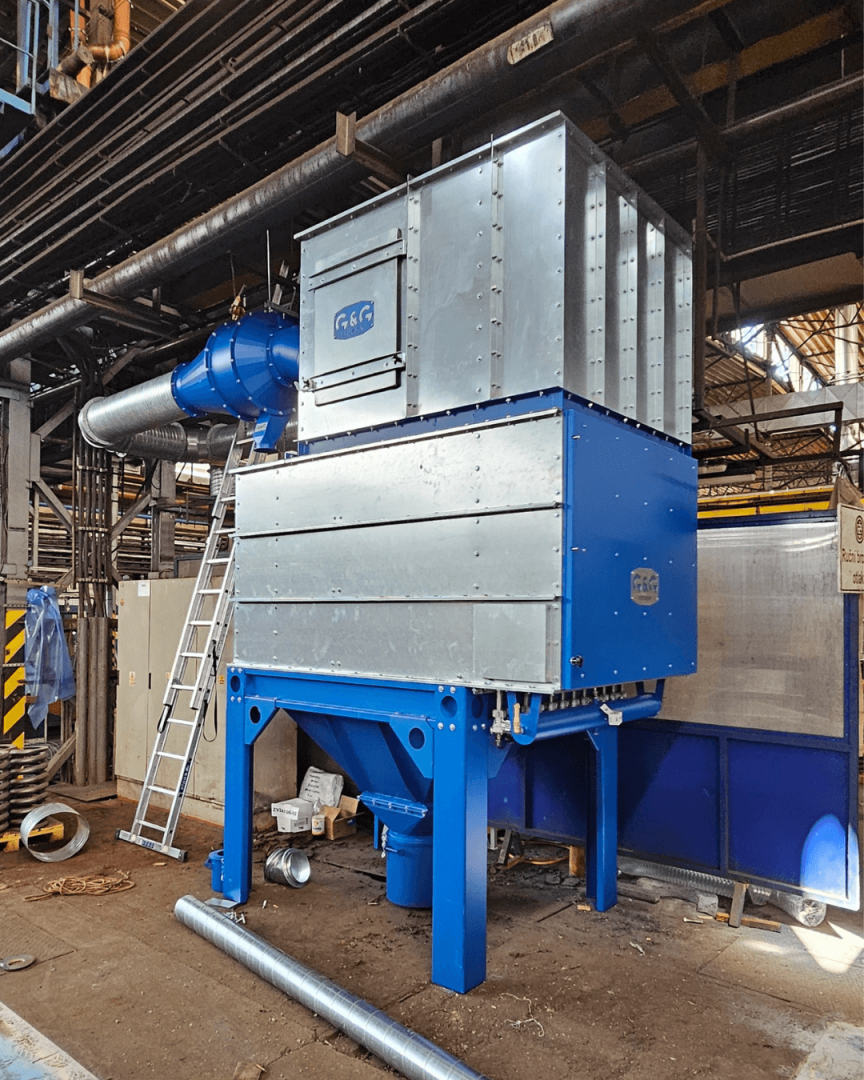

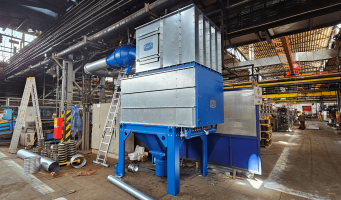

• The Jet BAG filter is equipped with automatic regeneration using compressed air, allowing for continuous operation without manual maintenance.

• The fan is housed in an acoustic enclosure, significantly reducing operational noise levels.

• Suction performance is regulated by a frequency inverter, ensuring stable and optimized extraction based on real-time needs while saving energy.

Key Advantages of the System

• Safe extraction of sparks and metallic dust

• Protection of the filter unit through a spark separator

• Low noise level thanks to the soundproofed fan

• Stable and adjustable suction power

• Fully automated system with minimal maintenance

• Proven solution for heavy-duty operations – foundries, metalworking, machining
