Processing raw wood on band saws or rip saws presents a specific challenge: the high moisture content of the waste material. While sophisticated filtration units with automatic regeneration are standard for dry dust in the furniture industry, such technology can paradoxically be a source of problems when dealing with wet sawdust.

In our implementation, we focused on maximum reliability and mechanical durability of a system based on cyclone separation.

The Moisture Problem: Why Do Conventional Filters Fail in Winter?

When extracting wet sawdust in unheated or partially heated sawmill areas, two major problems arise with fabric filters:

1. Media clogging: Moist dust combined with fine fabric creates an impermeable "crust."

2. Freezing: During the winter months, moisture in the filter media freezes, leading to a total loss of flow and the risk of damaging the regeneration mechanism.

Solution: The Power of Centrifugal Force

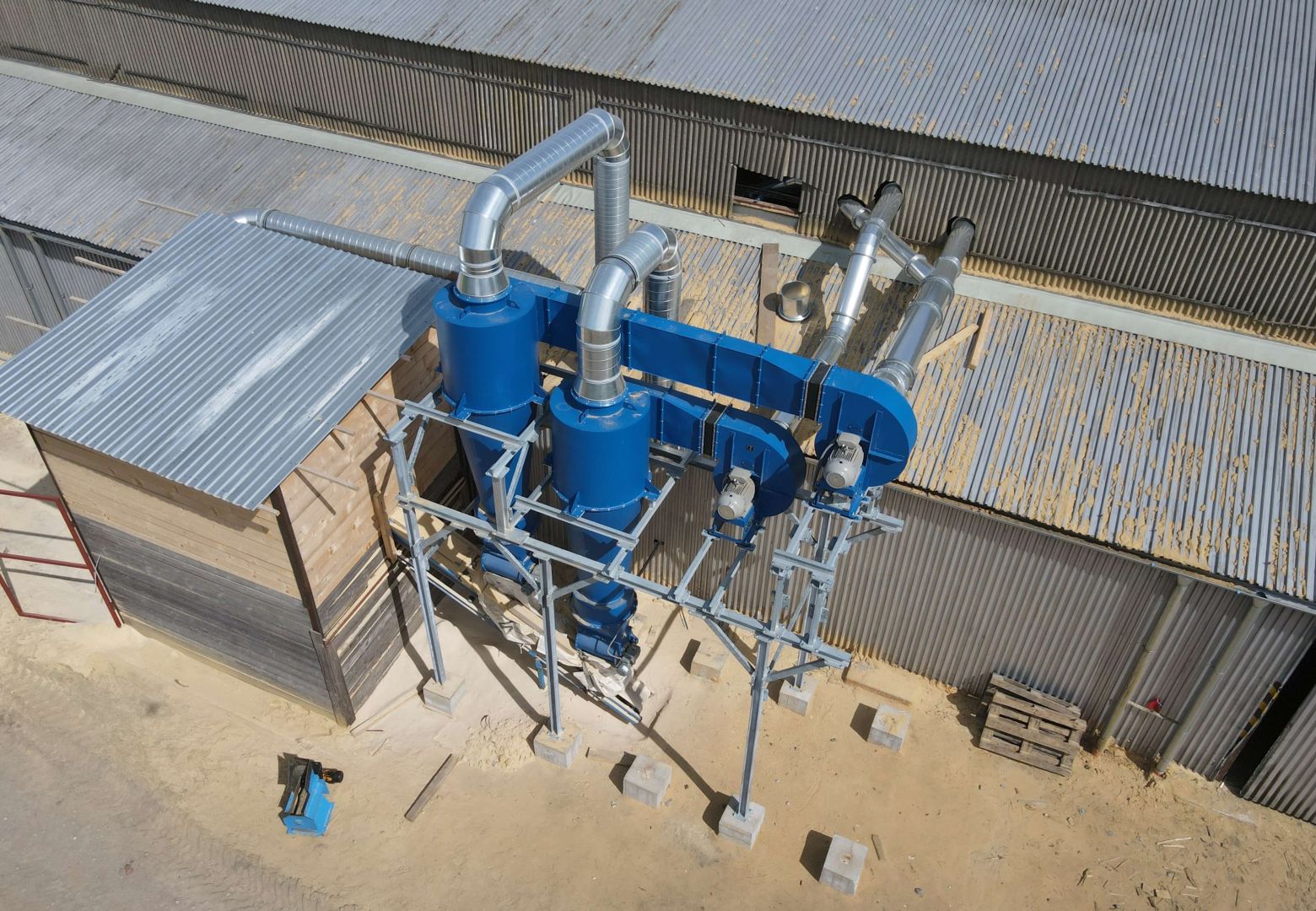

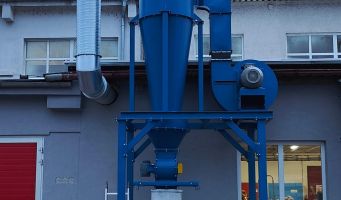

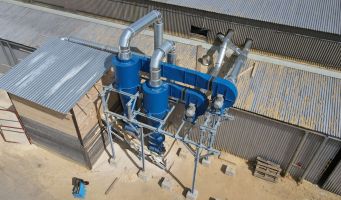

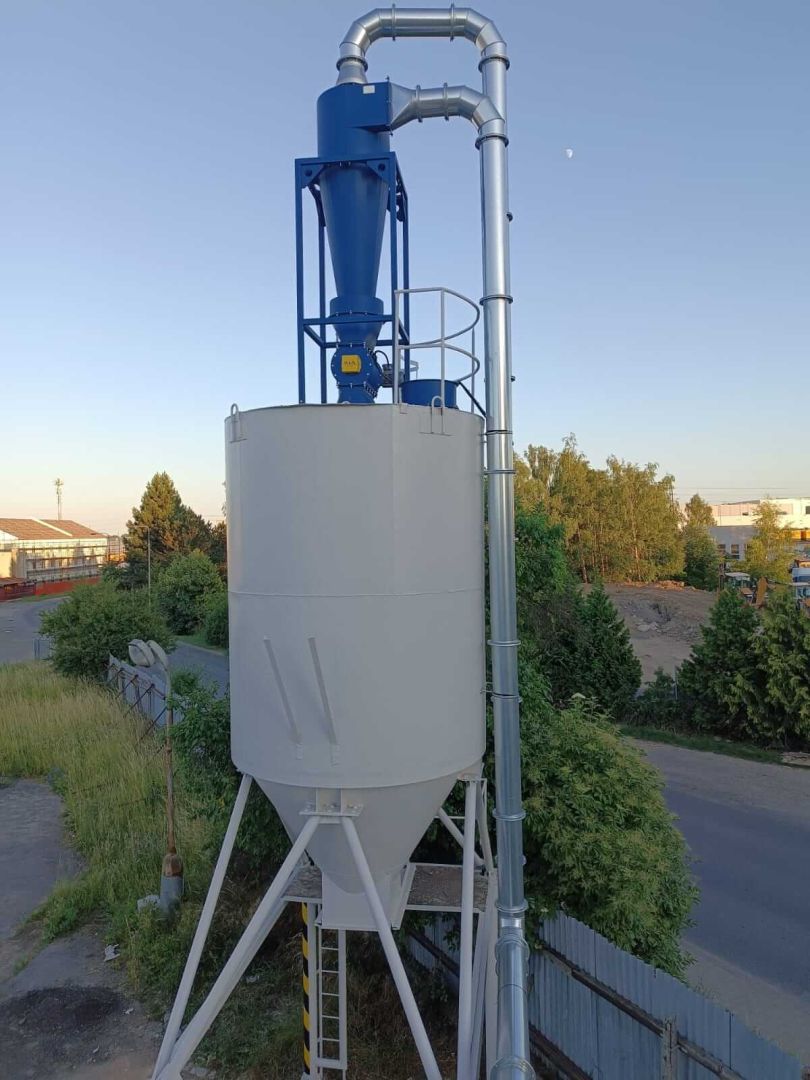

Instead of fine filtration, we opted for cyclone separators. These operate on the principle of centrifugal force, which separates heavy and moist sawdust from the air stream and allows it to fall into a hopper without coming into contact with a fine mesh or fabric.

• Maintenance-free: The cyclone has no moving parts that could wear out due to moisture.

• Filter bags: For final air purification indoors, we use filter bags that are sufficiently sized and located directly in the hall, which eliminates the risk of freezing.

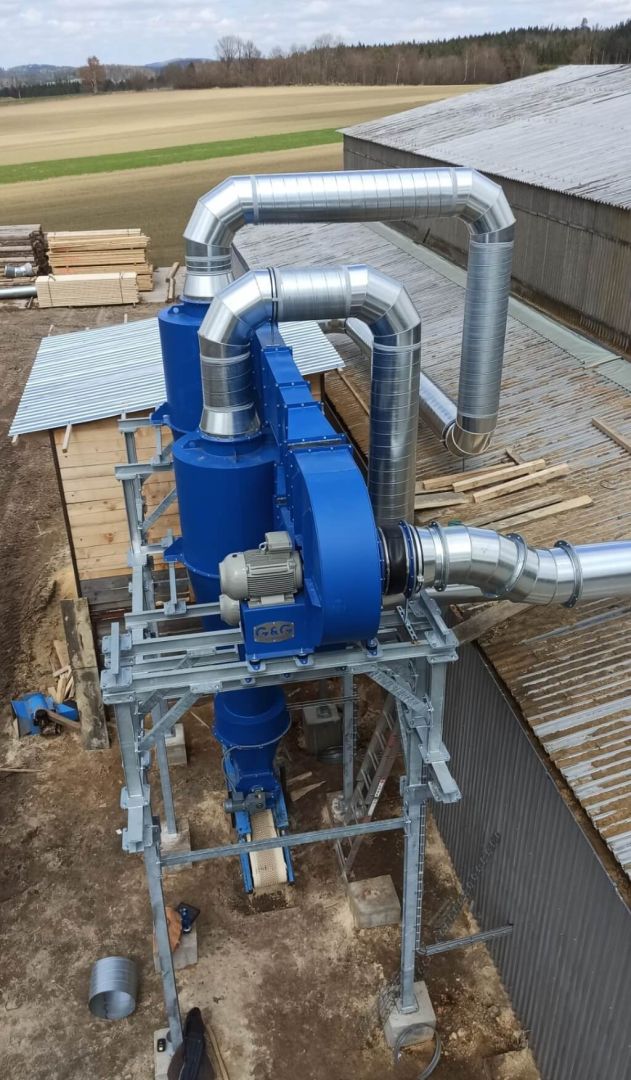

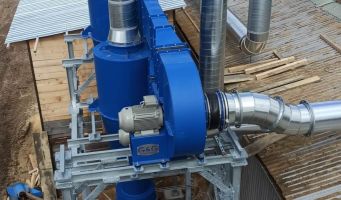

• Transport fans: Robust, heavy-duty fans can handle even sudden surges of heavy, wet material from the main cutting units.

Comprehensive sawmill integration

We designed the system to cover the entire production flow:

• Band saw: The main source of bulky waste.

• Ripping and crosscut saws: Secondary stations where finer, but still very moist, material is produced.

Because we return the cleaned air back into the sawmill area via exhaust vents, there is no unwanted cooling of the workspace during the winter—the heat generated by the machines remains inside.

Technical summary of the implementation

• Separation type: High-efficiency cyclone separators

• Supplementary filtration: Filter bags indoors

• Waste material: Wet sawdust, raw wood

• Machines with exhaust extraction: Wet sawdust, raw wood

• Main production: Wet sawdust, raw wood

• Energy: Air recirculation back into the hall

Conclusion

Sometimes the best technical solution is the one that is least prone to failure. Our installation of cyclone separators confirms that this is an ideal, low-maintenance, and long-term functional solution for wet operations.
